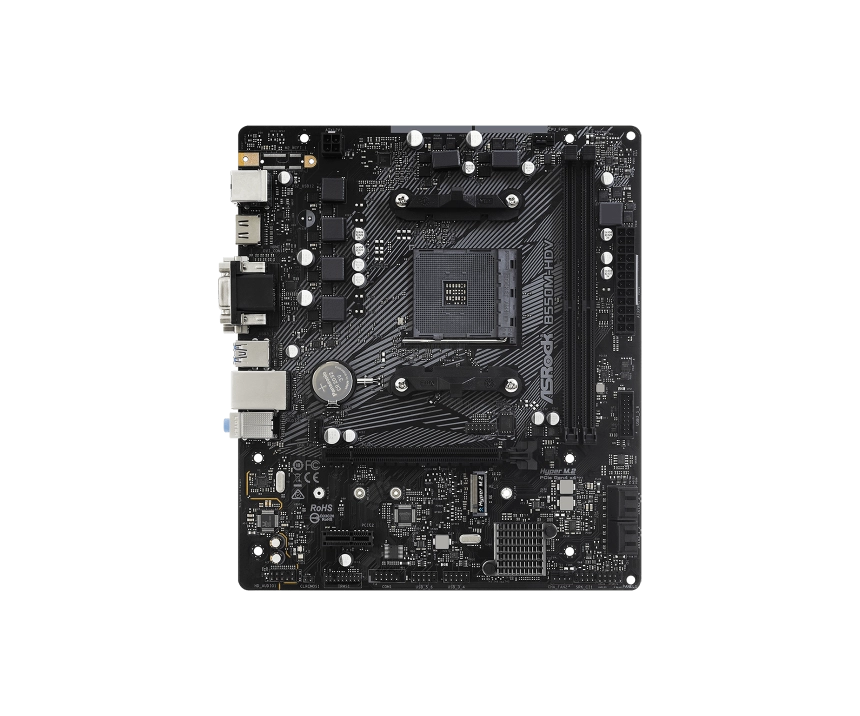

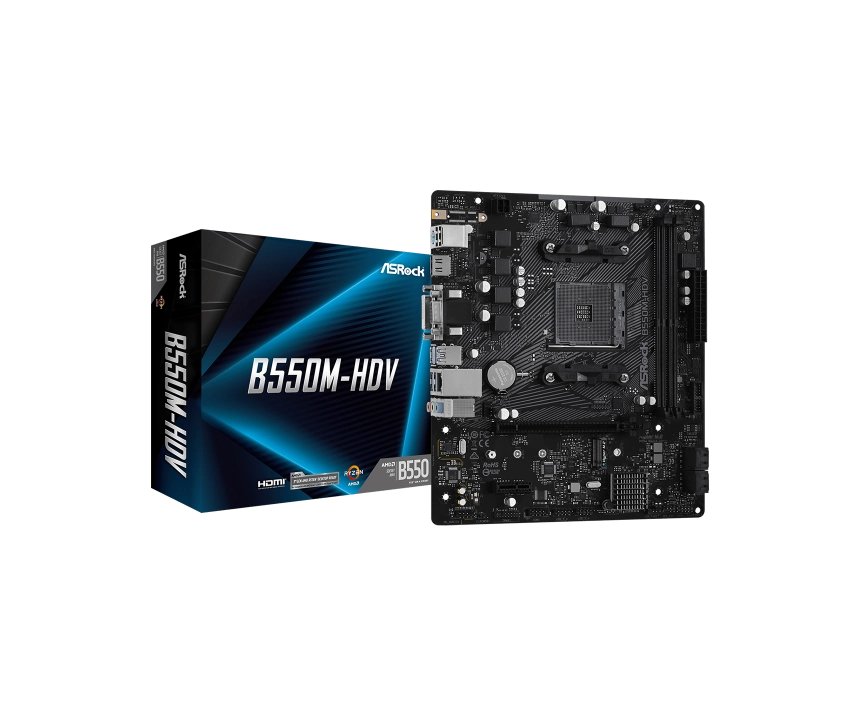

MB AM4 ASRock B550M-HDV 90-MXBDJ0-A0UAYZ

Name: MB AM4 ASRock B550M-HDV 90-MXBDJ0-A0UAYZ
Brand: Asrock
Price: 9070 RSD
Availability: InStock

(0 ocena)

Maloprodajna cena 10.530 RSD

Web cena 9.070 RSD

Ušteda:1.460 RSD

Akcija za ovaj proizvod traje od 04. 07. 2026 do 04. 07. 2026

Brza i pouzdana dostavaPoručite danas – proizvod stiže na vašu adresu u najkraćem roku, bilo gde u Srbiji.

Sigurna kupovina na ratePotpuna zaštita podataka i sigurna naplata. Izaberite plaćanje odloženo ili na rate uz maksimalnu bezbednost vaše porudžbine.

Metoda plaćanja	Broj rata	Mesečna rata
PIO fond (za penzionere)	6 meseci	1.755 RSD
Administrativna zabrana	6 meseci	1.755 RSD
Administrativna zabrana	12 meseci	878 RSD
OTP banka (na rate)	12 meseci	878 RSD

Tu smo za sva vaša pitanjaNaš tim je spreman da vam pomogne pre, tokom i nakon kupovine.
Pozovite nas: 035 88 56 910

Moćna matična ploča za ultimativne performanse

Predstavljamo ti Asrock B550M-HDV, matičnu ploču koja je osmišljena da zadovolji sve tvoje računarske potrebe! Sa podrškom za AMD Ryzen procesore treće generacije, pruža ti moćnu platformu za igranje, rad i multimedijalne zadatke. Ova mikro ATX ploča omogućava ti da izgradiš snažan sistem koji će se lako nositi sa zahtevnim aplikacijama.

Izvanredna memorijska podrška

Asrock B550M-HDV podržava DDR4-SDRAM memoriju do 64 GB, što ti omogućava besprekornu multitasking funkcionalnost. Bez obzira na to koliko aplikacija istovremeno pokrećeš, lako ćeš uživati u brzim i efikasnim performansama. Uveri se da ni jedan bit tvoje kreativnosti ne prođe nezapaženo!

Fantastična grafika i audio iskustvo

Uživaj u zapanjujućim vizuelnim prikazima zahvaljujući integrisanoj AMD Radeon Vega grafici, kao i 7.1 CH HD Audio podršci sa Realtek ALC887 audio kodekom. Ova matična ploča donosi izvanredno iskustvo gledanja i slušanja, bilo da gledaš omiljene serije ili igraš igre. Mogućnosti su beskrajne!

Specifikacija	Vrednost
Dubina	201 cm
Težina	2.5 kg
Skup čipova matične ploče	AMD B550
Izlazni audio kanali	7.1
Audio čip	Realtek ALC887
Standard dimenzija matične ploče	mikro ATX
Tip memorijskih slotova	DIMM
Broj memorijskih slotova	2
Podržani tipovi memorije	DDR4-SDRAM
Broj SATA III priključaka	4

Slični proizvodi

-8%

CPU

- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
- 6 Power Phase design

*Not compatible with AMD Athlon™ Processors.
Chipset

- AMD B550
Memory

- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Picasso) support DDR4 3533+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
- Max. capacity of system memory: 64GB**
- Supports Extreme Memory Profile (XMP) memory modules
- 15μ Gold Contact in DIMM Slots*

SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
Graphics

- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports***
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
- Supports Microsoft^® PlayReady

*Actual support may vary by CPU

**The Max shared memory 16GB requires 32GB system memory installed.

***Picasso supports HDCP 2.2 with HDMI 2.0 Port
Audio

- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- Supports Surge Protection
LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Slots

AMD Ryzen series CPUs (Vermeer and Matisse)
- 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)*
AMD Ryzen series APUs (Cezanne and Renoir)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
AMD Ryzen series APUs (Picasso)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*

- 1 x PCI Express 3.0 x1 Slot

*Supports NVMe SSD as boot disks
Storage

- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Hyper M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)*

*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Connector

- 1 x SPI TPM Header
- 1 x COM Port Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.
CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.

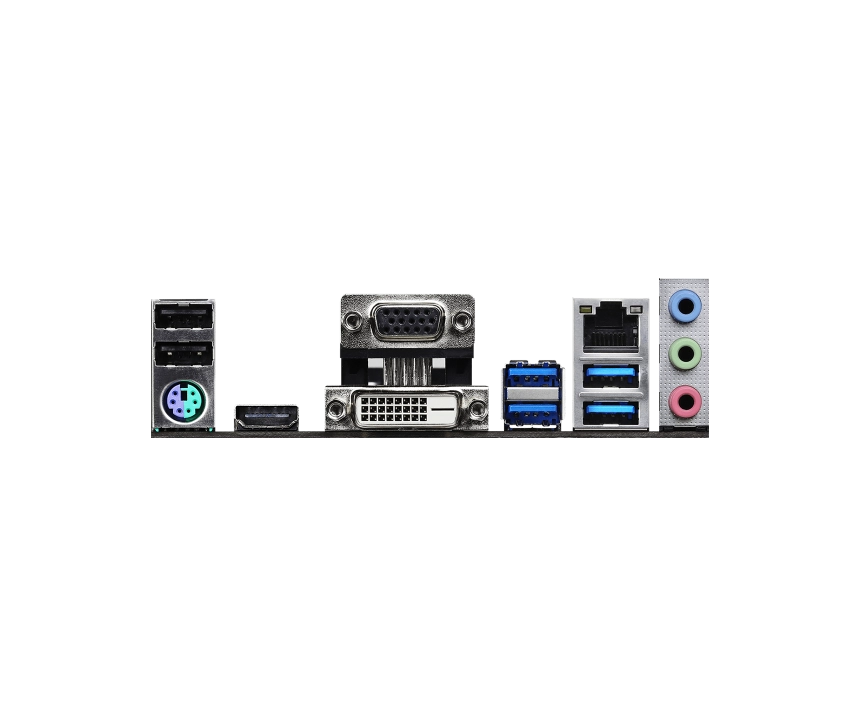

Rear Panel I/O

- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories

- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
Hardware Monitor

- Temperature Sensing: CPU, Chassis Fans
- Fan Tachometer: CPU, Chassis Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
- Fan Multi-Speed Control: CPU, Chassis Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor

- Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
